Simulating water and air (or fluids in general) in Abaqus can be a complex but enriching task, especially when dealing with fluid-structure interaction (FSI) problems. Below is a detailed lecture-style explanation of how to approach water and air simulation in Abaqus
Water and Air Simulation in Abaqus
Introduction to Fluid Simulation in Abaqus
Abaqus is primarily known for its robust capabilities in structural analysis, but it also supports fluid dynamics simulations, particularly when coupled with structural systems. Water and air are common fluids in engineering applications, and simulating their behavior often involve
Fluid-Structure Interaction (FSI): Where the fluid (water or air) interacts with a solid structure (e.g., a dam, aircraft wing, or offshore platform)
Computational Fluid Dynamics (CFD): For analyzing fluid flow, pressure, and turbulence
Abaqus uses the CFD module and Coupled Eulerian-Lagrangian (CEL) approach for fluid simulations. Let’s break this down
Concepts for Water and Air Simulation
Material Properties
Water: Typically modeled as an incompressible Newtonian fluid with a density of 1000 kg/m³ and dynamic viscosity of 0.001 Pa·s
Air: Modeled as a compressible fluid with a density of 1.225 kg/m³ (at sea level) and dynamic viscosity of 1.81e-5 Pa·s
Governing Equations
Navier-Stokes Equations: These describe the motion of fluids and are solved numerically in Abaqus
Continuity Equation: Ensures mass conservation
Continuity Equation: Ensures mass conservation
Modeling Approaches
Eulerian Approach: The mesh is fixed, and the fluid flows through it. Suitable for large deformations and free-surface flows (e.g., water sloshing)
Lagrangian Approach: The mesh moves with the fluid. Suitable for structural analysis but less common for pure fluid simulations
Coupled Eulerian-Lagrangian (CEL): Combines both approaches, ideal for FSI problems
Water Simulation
Dam Break Simulation

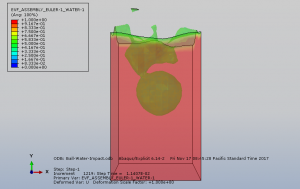

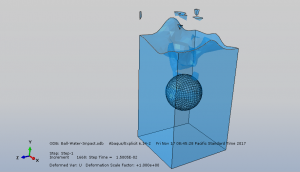

Use the CEL approach to model water flowing and interacting with a solid structure
Track the free surface using the Volume of Fluid (VOF) method

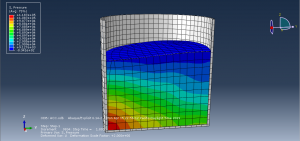

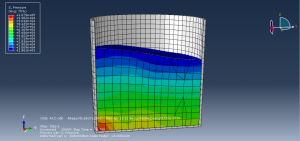

Sloshing in a Tank

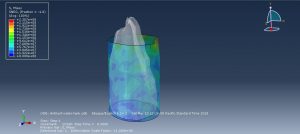

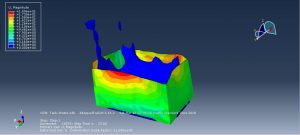

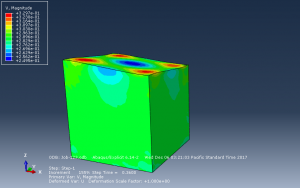

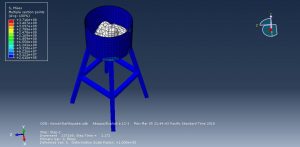

Simulate the movement of water inside a tank subjected to external motion
Air Simulation
Aerodynamic Analysis

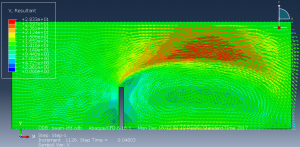

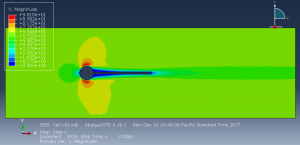

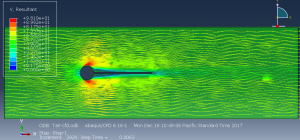

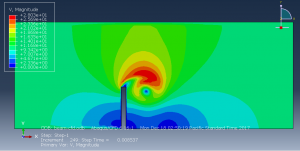

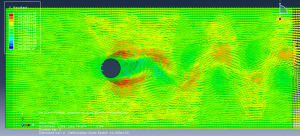

Simulate airflow over a wing or vehicle to study lift, drag, and turbulence
Wind Loading on Structures
Analyze the effect of wind pressure on buildings or bridges
Challenges and Tips
Mesh Refinement: Fluid simulations require a fine mesh, which can increase computational cost
Stability: Explicit solvers may require small time steps for stability
Convergence: For steady-state simulations, ensure proper boundary conditions and solver settings to achieve convergence
Free Surface Tracking: Use techniques like VOF or Level Set methods to accurately track the interface between water and air
Turbulence Modeling: Use models like k-ε or k-ω to simulate turbulent flows
Multiphase Flow: Simulate interactions between water and air (e.g., waves or bubbles)
Thermal Effects: Include heat transfer in fluid simulations for applications like HVAC systems
Simulating water and air in Abaqus requires a solid understanding of fluid mechanics and the appropriate modeling techniques. By leveraging the CEL approach and Abaqus’s powerful solvers, you can accurately model complex fluid dynamics and fluid-structure interaction problems. Practice with simple cases (e.g., water sloshing or airflow over a flat plate) before moving to more complex simulations
