In this tutorial Simulation steel concrete composite column under vertical and horizontal load in Abaqus has been investigated. Steel-concrete composite columns are new composite members. They are widely used due to their high load-bearing capacity, full usage of materials, high stiffness and ductility and large energy absorption capacity as pointed out by researcher.Combining reinforced concrete (RC) and structural steel sections provides several advantages over traditional reinforced concrete and steel members. The concrete provides fire resistance to the steel section and restrains the steel member from buckling .Applying steel-concrete composite columns has a beneficial impact on the course and values of concrete strains in relation to reinforced concrete columns.However, SRC columns require longitudinal and transverse reinforcement to prevent the concrete from spalling while being subjected to axial load, fire, or an earthquake

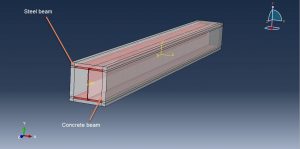

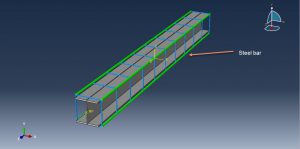

The concrete column and steel beam as core are modeled as three dimensional part, the bar as wire and pusher plate as rigid . You can see figures of assembled parts at below

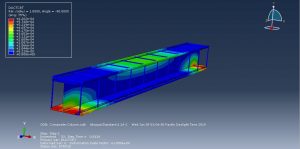

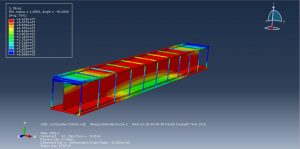

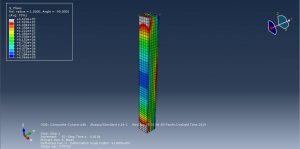

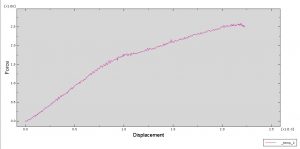

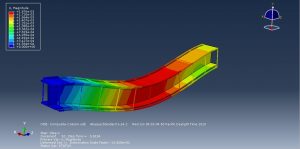

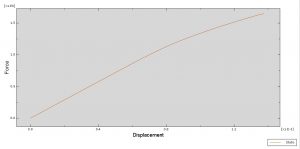

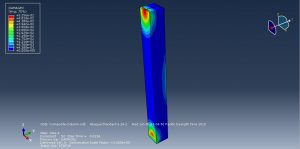

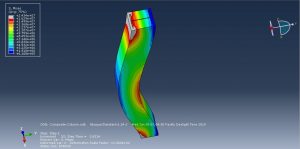

Elastic plastic material with ductile damage criterion is used for steel members and Concrete Damage Plasticity or CDP model is used for concrete column. In this tutorial general static and dynamic explicit procedure are used separately and the result of the compared at the end of simulations. The contact between concrete and steel beam is assumed as perfect contact and bars embedded in the concrete host. Vertical concentrated force is applied to the top surface of column and pressure load is applied to the side surface of concrete. After the two static and dynamic simulation all results such as stress,strain,damage,displacement and force diagram can be achieve . You can see some figures of these two simulation at below
