Simulation rigid body impact to concrete wall reinforced with composite plate by using SPH method in Abaqus

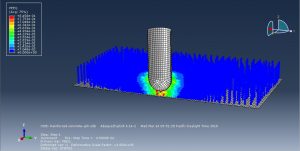

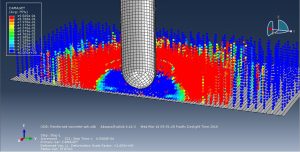

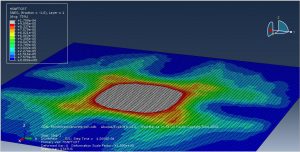

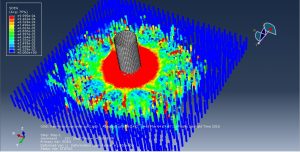

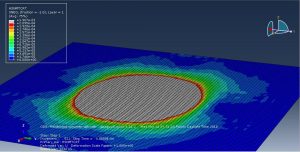

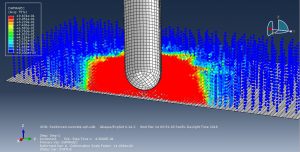

In this Tutorial Simulation rigid body impact to concrete wall reinforced with composite plate by using SPH method in Abaqus has been investigated. All parts are modeled as three dimensional and to definite concrete behavior CDP material model with SPH formulation has been used. Composite made of Epoxy-Glass layers modeled by three dimensional shell element with Hashin’s damage criterion .Explicit procedure is appropriate for this analysis and you can see some figures of this simulation at below

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty-Three Euros. you can click on the bellow bottom to beginning process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
