Simulation Pile in interaction with soil under vertical load in Abaqus

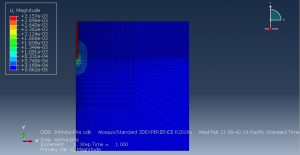

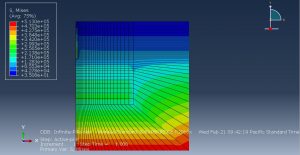

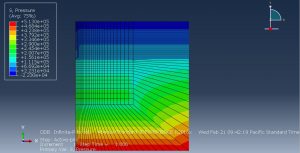

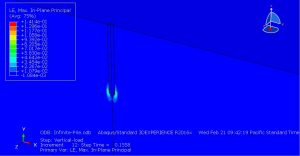

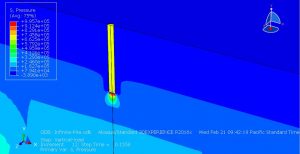

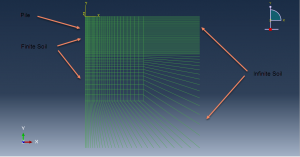

In this video pile in interaction with soil under vertical load in Abaqus has been investigated. To model this tutorial two D has been used.Concrete pile is modeled as elastic material and Mohr-Coulomb plasticity with variant elastic depend on elevation for soil has been implanted. Infinite element for modeling area far from the load zone in the soil by changing input file and modifying it has been applied. To simulate this tutorial four steps was used. You can see some figures of this simulation at bellow

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Nineteen Euros. you can click on the bellow bottom to beginning process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
