Simulation impact welding process in Abaqus by using Lagrangian approach

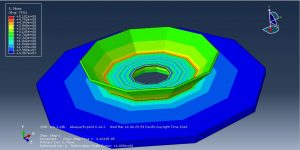

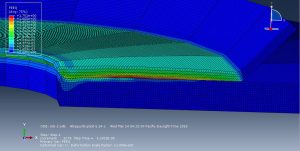

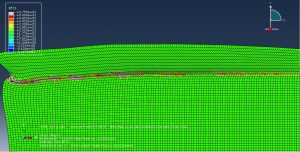

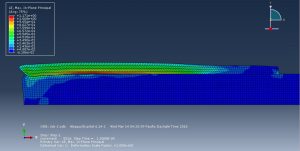

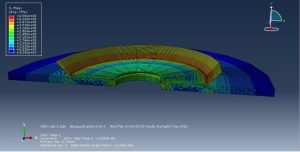

Today, major innovations suggest the use of dissimilar material combination to meet new  design criteria such as mass light weighting, structural reinforcements, or other specific  fictionalization. The development of functional material combinations knows a growing  interest in several engineering fields. Solutions can however be limited by the capability of  the bulk materials to be joined together. In this video impact welding process in Abaqus by using Lagrangian approach has been investigated. The aim of this simulation is monitoring residual stress happen in the process. Dynamic Explicit procedure is appropriate for this analysis but for thermal analysis Dynamic-Temp-Explicit with vert small mesh is needed for observing temperature field. You can see some figures of this simulation at below

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty-Three Euros. you can click on the bellow bottom to beginning process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
