Simulation High Velocity Impact on to the Silicon Carbide Plate in Abaqus

This is a full English video to clarify high velocity impact of a steel projectile on to the ceramic plate in Abaqus soft ware. The steel projectile has been modeled as a deformable part and for material model  has been used ductile and shear damage with evolution for predicting fracture area

For the Silicon plate ductile damage with evolution,Drucker-Prager plasticity with hardening couple with Us-Up equation for fracture zone.

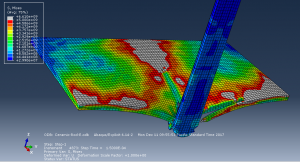

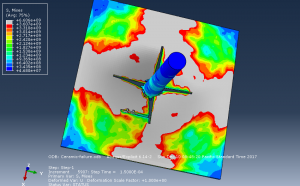

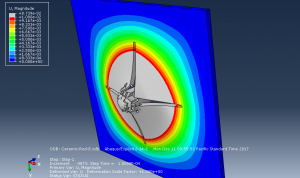

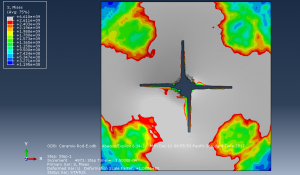

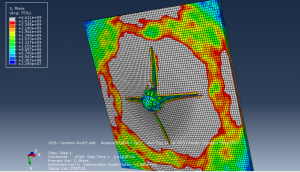

You can see the result of this simulation in the bellow pictyre

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty Euros. you can click on the bellow bottom to beginning process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
