The usage of water jets has spread into numerous fields and for multifaceted purposes such as cleaning, cutting, and punching various materials. Because the impact occurs over an extremely short period, the target may deform elastically or plastically at high rates of strain. The dynamics of this process are

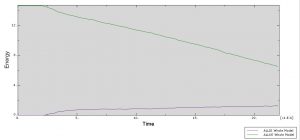

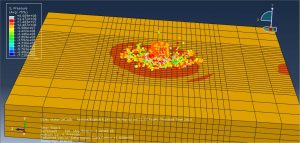

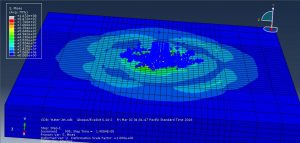

complex and not fully understood. This paper applies a numerical method to simulate the phenomenon. A water jet with a spherical head was used at a speed of 570 m/s to impact on a structure, which was a flat plate made of Polymethyl-Methacrylate (PMMA).In this video you can see the effect of water jet to produce residual stress in the PMMA plate has been simulated in Abaqus. You can see some figures of this simulation at bellow
You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty-Three Euros. you can click on the bellow bottom to beginning process
You can purchase the tutorial through a PayPal account, a Visa, or a Master card, just before payment,send me an email to this address: karampourp@gmail.com
