Simulation fusion welding and investigation residual stress during process by using DFLUX subroutine in Abaqus

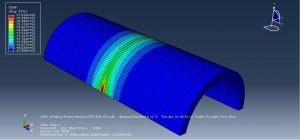

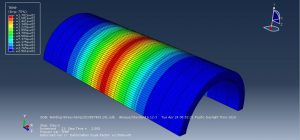

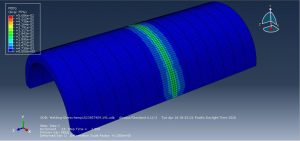

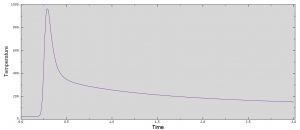

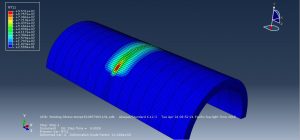

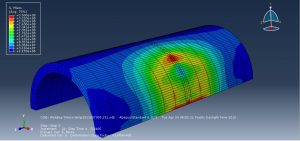

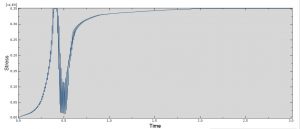

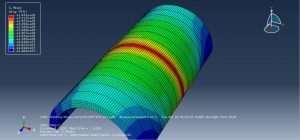

Fusion welding has been a key factor of in the creation of modern civilization due to its key role in construction practices. Besides bolts and rivets, there are no other practical method for joining pieces of metal securely. Fusion welding is used in the manufacture of many everyday items including airplanes, cars, and structures. A large community uses both arc and flame contact welding to create artwork. In this simulation fusion welding and investigation residual stress during process by using DFLUX subroutine in Abaqus has been done. To model none uniform heat distribution DFLUX subroutine on the circular pass over a steel pipe has been implanted. During the process residual stress was created by moving heat. You can see some figures of this simulation at below

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty-Seven Euros. you can click on the bellow bottom to beginning process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
