This file has contain CAE and Persian video file that explain Friction Stir Welding process step by step. in this file we used the Eulerian element for two copper pieces and Lagrangian element for tool. During the analysis you can see the temperature distribution in two pieces.Friction Stir Welding (FSW) is a solid state joining process that relies on frictional heating and plastic deformation realized at the interaction between a non-consumable welding tool that rotates on the contact surfaces of the combined parts. The experiments are often time consuming and costly. To overcome these problems, numerical analysis has frequently been used in last years. Several simplified numerical models were designed to elucidate various aspects of the complex thermo-mechanical phenomena associated with FSW.

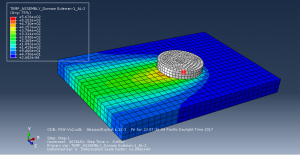

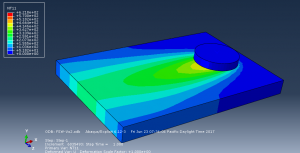

You can see some picture of this process below
You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty-Six Euros. you can click on the bellow bottom to beginning process
You can purchase the tutorial through a PayPal account, a Visa, or a Master card, just before payment,send me an email to this address: karampourp@gmail.com
