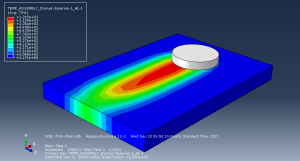

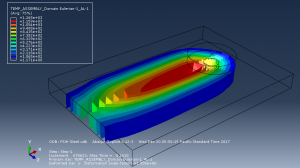

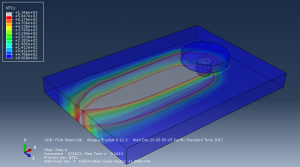

FSW problem is a multi-physics problem that includes excessive material deformation and heat flow .In the current work, a coupled Eulerian Lagrangian (CEL) model is developed using Abaqus environment to simulate the two phases of FSW process ( welding).Finite element modelling (FEM) of the FSW process leads to a better understanding of the effect of the process parameters on the welding process and the weld seam properties. Nowadays, FSW finite element models can be classified into three types: thermal, thermo-mechanical non-flow base, and thermo-mechanical flow-based models.In flow-based models, traditional Lagrangian elements become highly distorted and results may lose accuracy. In order to avoid high mesh distortion, several modelling techniques are often used: adaptive re-meshing and Arbitrary Lagrangian Eulerian (ALE). Flow-based models are developed using computational fluid dynamics (CFD). Among the main drawbacks in CFD simulations is its inability to include material hardening as it only considered rigid-viscoplastic material behaviour.This file contain CAE and English video file step by step of FSW of two Steel plates.During the analysis tool move and rotate in the plates and create heat in them.you can see some pictures of the results in the bellow
You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty-Six Euros. you can click on the bellow bottom to beginning process
You can purchase the tutorial through a PayPal account, a Visa, or a Master card, just before payment,send me an email to this address: karampourp@gmail.com
