Simulation fluid structure interaction in ABAQUS

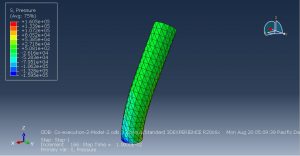

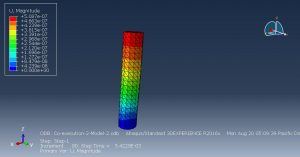

In this video Simulation fluid structure interaction in ABAQUS has done. The ABAQUS has this capability to perform FSI analysis and create a appropriate coupling between CFD and Standard analysis. In this example the effect of air velocity over the short column has been investigated. The air domain was crated in CFD section and air property is defined by density and viscosity. The column was created in Standard section and steel material with elastic property is assigned it. To definite proper interaction Fluid Structure Interaction has used between two models. Velocity and pressure in the CFD section has changed with stress and displacement in the Standard section . You can see some figures of this simulation at below

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty Euros. you can click on the bellow bottom to beginning process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
