Simulation dynamic bending test of steel-UHPFRC composite beam(column) with multiple encased steel profiles in Abaqus

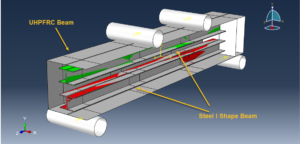

In this tutorial, the Simulation dynamic bending test of steel-concrete composite beam(column) with multiple encased steel profiles in Abaqus has been done. The beam(column) part is modeled as a three-dimensional solid part, the two steel beam parts are  modeled as three-dimensional solid part. You can see a figure of the assembled parts below

A high urbanisation of the main cities in theworld enforced the vertical growth of buildings. The number of high-rise buildings, as well as their height have greatly increased in the last decades. The cosposite beam and column because of their specifications can be used in the high-rise buildings

 To model Ultra-High-Performace-Fiber-Reinforce-Concrete beam or column behaviour the Concrete Damaged Plasticity is selected. Concrete damage plasticity material model represents a constitutive model which is based on a combination of theory of plasticity and theory of damage mechanics. This material model is often used in solving geotechnical problems due to its realistic description of mechanical behavior of concrete material.To model steel beam behaviour, the elastic-plastic model with ductile damage criterion is considered

This model can be solved with static and dynamic solver, so in this tutorial the dynamic explicit step with a mass scale type time to reduce the inertia effect is used. The perfect contact is assumed between the UHPFRC beam and rigid bodies. The tie and cohesive interaction both can be used for the contact between concrete and steel beam. The proper boundary condition is assigned to the two bottom rigid bodies. The mesh should be fine to obtain the correct results

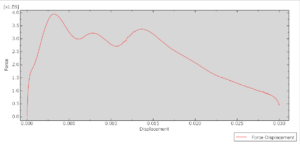

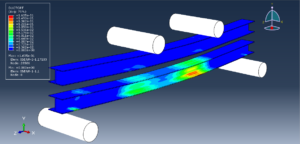

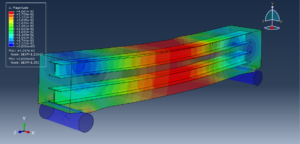

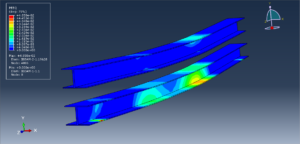

After the simulation, all results such as stress, strain, tension and compression damage, failure, force-displacement diagram,… are available. You can see some figures for the results below



You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty-six Euros. you can click on the bellow bottom to begin the process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
