Simulation blast loading over concrete slab reinforced by composite layers in Abaqus

In this video you can see Simulation blast loading over concrete slab reinforced by composite layers in Abaqus step by step.With the increased world tension, terrorist bombing attacks or accidental explosions are becoming a large threat to infra-structure such as the important economic, military and civilian facilities. The research on the antiknock safety of structures has increasingly attracted people’s attention. In order to meet the ever increasing demand for power, irrigation and drinking water et al., the majority of high dams are being built or to be built. Considering their significant political and economic ben-efits, undoubtedly, high dams might be targeted by terrorists because the possible failure of dams can cause economic disas-ter, a large number of casualties, and garner significant media attention. Since the September 11 attacks by terrorists, there has been increasing public concern about the threat of bomb attacks on dam structures

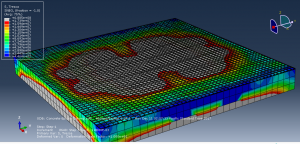

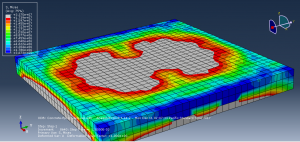

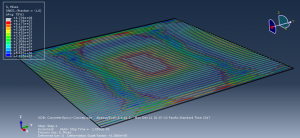

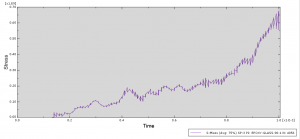

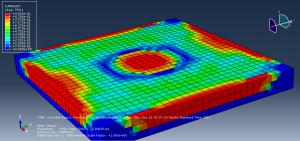

Concrete is modeled as lagrangian part with CDP(Concrete Damage Plasticity) to predict fracture area in slab. Composite plates are made of Epoxy-Glass material and modeled as a continuum shell ass shield for protecting concrete from fracture.For blast modeling CONWEP procedure has been used. In the bellow pictures you can see some results of this simulation

Yo

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty-Two Euros. you can click on the bellow bottom to beginning process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
