Simulation bearing capacity of a three dimensional square foundation in Abaqus

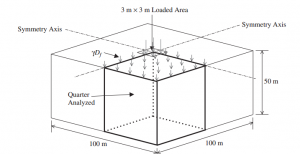

In this tutorial Simulation bearing capacity of a three dimensional square foundation in Abaqus base on the Sam Helwany’s book has been investigated. To model soil and foundation a one three dimensional part is used.You can see a figure about it at below

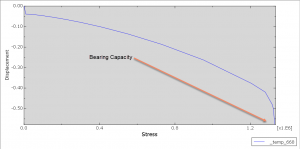

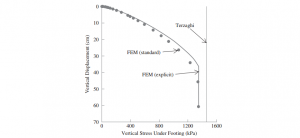

The elastic and cap plasticity with cap hardening model for soil is used.In this tutorial two static step has been implied. In the first step gravity and pressure load from overburden soil is applied and in the second step the vertical velocity is applied to the square foundation to get the bearing capacity like below figure

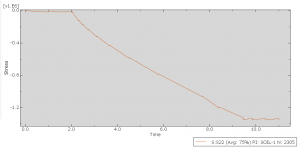

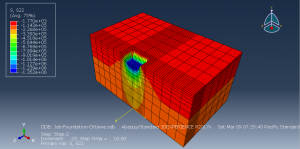

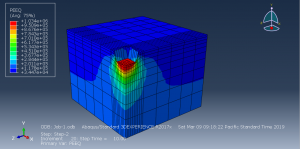

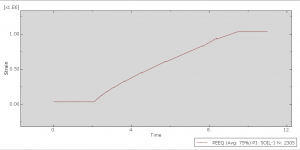

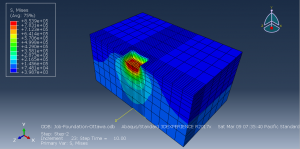

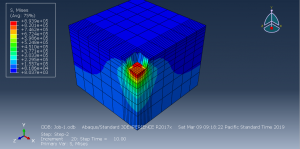

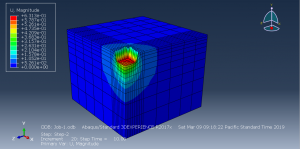

after assigned the vertical velocity to the foundation the soil experienced a large deformation which need to be converge by using an appropriate mesh. After the simulation the stress,strain,displacement and bearing capacity diagram can be achieved . You can see some figures of this simulation at below.

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty-Three Euros. you can click on the bellow bottom to beginning process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
