Introduction to Rock and Stone Simulation and Analysis in Abaqus
Rock and stone analysis in Abaqus software involves simulating the mechanical behavior of geological materials, such as rocks, stones, and other geomaterials, under various loading and environmental conditions. Abaqus, a powerful finite element analysis (FEA) software, is widely used in engineering and geotechnical applications to model complex material behaviors, including elasticity, plasticity, fracture, and damage. Brittle behavior in rocks refers to how rocks deform and ultimately fail under stress, typically characterized by little to no plastic deformation before fracture. This type of behavior is common in rocks under conditions of low temperature and low pressure, which are typically found near the Earth’s surface
Key Features of Rock and Stone Analysis in Abaqus
Material Modeling
Elastic Behavior: Rocks and stones can be modeled as linear or nonlinear elastic materials, depending on their stress-strain response
Plasticity: Abaqus supports plasticity models like the Mohr-Coulomb, Drucker-Prager, and Hoek-Brown criteria, which are commonly used to capture the yielding and failure of geomaterials
Damage and Fracture: Abaqus allows for the simulation of crack initiation and propagation in rocks and stones using cohesive zone models, extended finite element methods (XFEM), or smeared crack models
Creep and Viscoelasticity: Time-dependent deformation of rocks, such as creep, can be modeled using viscoelastic or creep material models
Brittle Failure: If the stress continues to increase beyond the elastic limit (the point at which the rock can no longer return to its original shape), the rock will undergo brittle failure. This failure occurs suddenly and with little warning, as the rock fractures along discrete planes
Types of Brittle Fractures
Tensile Fractures: These occur when the rock is pulled apart, leading to the formation of fractures perpendicular to the direction of the applied tensile stress
Shear Fractures: These occur when the rock is subjected to shear stress, leading to fractures that form at an angle to the direction of the applied stress. Shear fractures are common in fault zones
Jointing: Joints are fractures in rocks that do not involve significant displacement. They often form due to the release of stress, such as during the cooling of igneous rocks or the unloading of overburden pressure
Rock and stone analysis in Abaqus is a versatile and powerful tool for understanding the mechanical behavior of geological materials. By leveraging Abaqus’s advanced material models, coupled analysis capabilities, and simulation techniques, engineers and researchers can accurately predict the response of rock masses to various loading and environmental conditions, leading to safer and more efficient designs in geotechnical and mining applications
In this package, you will learn all types of Rock Modeling and Simulation, including all materials and methods
The package contains Ten separate tutorials, each tutorial includes cae, inp, code, paper, reference of the materials, and a step-by-step English video. You can check the titles of the tutorials below

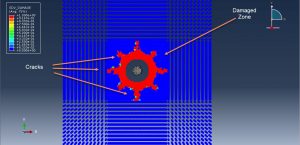

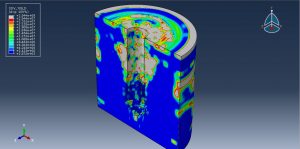

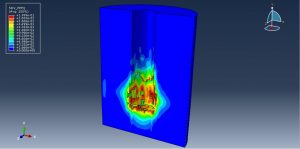

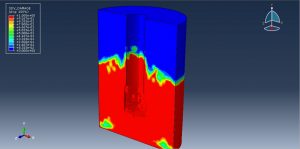

A) Simulation of internal explosion inside the rock by using the coupled Eulerian-Lagrangian method in Abaqus

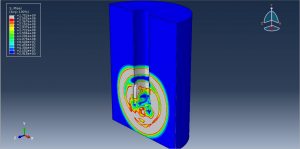

B) Simulation TNT explosion inside the rock in Abaqus

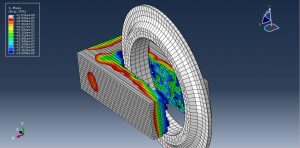

C) Simulation and modeling of rock breakage process by TBM rolling cutters in Abaqus

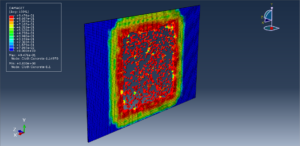

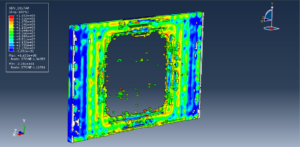

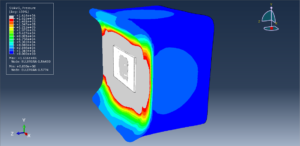

D) Simulation CEL explosion near a stone wall covered with cloth concrete in Abaqus

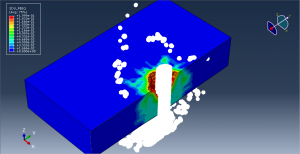

E) Simulation of water jet penetration into the stone piece in Abaqus by using the SPH method

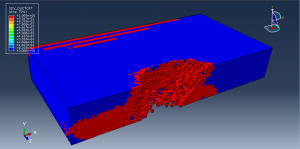

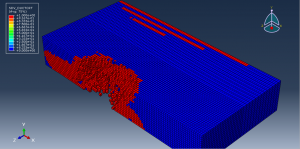

F) Simulation sandstone cutting by using a rigid tool in Abaqus-Damage investigation

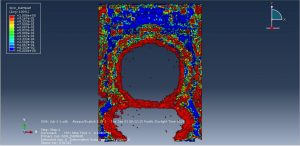

G) Simulation Eulerian-Lagrangian explosion in the stone tunnel in interaction with soil in Abaqus
H) Simulation granite stone cutting by using a rigid cutter in Abaqus

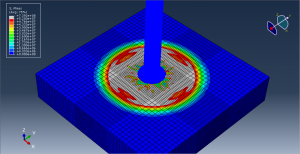

I) Simulation of rigid impact on granite stone with SPH method in Abaqus- Damage investigation
J)Numerical simulation of high-velocity impact on Granite stone in Abaqus and investigation-induced damage
The price of this package is Seventy-One Euros, you can use a PayPal account, a Visa, or a Mastercard for the payment.
If you are interested in the fire package, send us an email here: abaqusfem.com@gmail.com
