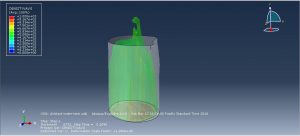

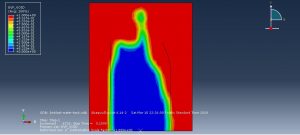

A growing number of terror attacks all over the world have become a threat to the human civilization.In the last two decades, bomb blasts in crowded business areas, underground railway stations, and busy roads have taken numerous lives and destroyed properties in different parts of the world. However, blast response of many important civil infrastructures has still not been well understood due to the complexities of their material behavior, loading, and higher nonlinearities. One such example of important civil infrastructure is liquid storage tanks which are undividable parts of any society for storage of water, milk, liquid petroleum, chemicals in industries etc. Blast loading on liquid storage structures may lead to disaster due to water and milk crisis, health hazard owing to the spread of chemicals and fire hazard due to the spread of liquid fuel. Hence, understanding the dynamic behavior of liquid storage structures under blast loading through numerical simulations is of utmost importance. In the present study, three dimensional (3D)finite element (FE) simulations of a steel water storage tank for different tank aspect ratios.In this step by step tutorial, you will see modeling procedure of the blast simulation over a tank filled with water in Abaqus.To model blast effect CONWEP procedure has been implanted. Water is modeled as eulerian part for the better view of it’s sloshing during explosion and tank is modeled as shell element
You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty-Four Euros. you can click on the bellow bottom to beginning process
You can purchase the tutorial through a PayPal account, a Visa, or a Master card, just before payment,send me an email to this address: karampourp@gmail.com
