Introduction to concrete and steel columns
Concrete and steel columns are fundamental structural elements used to support loads and transfer them to the foundation. They are essential components in buildings, bridges, and other structures, providing stability, strength, and durability. Here’s an introduction to both types of columns
Concrete Columns

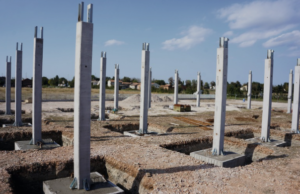

Concrete columns are vertical structural members made primarily of reinforced concrete, which is a combination of concrete and steel reinforcement. They are widely used in construction due to their high compressive strength, durability, and fire resistance
Key Features
Material Composition
Concrete: Provides high compressive strength and durability
Steel Reinforcement (Rebar): Adds tensile strength and ductility, as concrete is weak in tension
Types of Concrete Columns
Reinforced Concrete Columns: Standard columns with embedded steel bars
Precast Concrete Columns: Manufactured off-site and transported to the construction site
Prestressed Concrete Columns: Pre-tensioned or post-tensioned to improve load-bearing capacity
Advantages
High load-bearing capacity
Resistant to fire, weather, and corrosion (with proper cover to reinforcement)
Can be molded into various shapes and sizes
Economical for large-scale projects
Disadvantages
Heavy, requiring strong foundations
Time-consuming to construct due to curing time
Prone to cracking if not designed or constructed properly

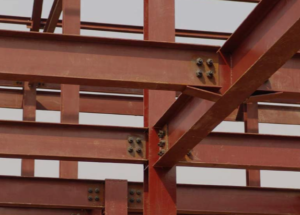

Steel Columns
Steel columns are vertical structural members made of structural steel, which is an alloy of iron and carbon. They are commonly used in high-rise buildings, industrial structures, and bridges due to their high strength-to-weight ratio and flexibility
Key Features
Material Composition
Structural Steel: High tensile and compressive strength, ductility, and durability
Often coated with fireproofing or anti-corrosion materials for protection
Types of Steel Columns
H-Section Columns: Commonly used due to their efficient load distribution
I-Section Columns: Ideal for bending and axial loads
Hollow Structural Sections (HSS): Used for aesthetic and structural purposes
Advantages
High strength-to-weight ratio, reducing foundation requirements
Faster construction compared to concrete columns
Recyclable and sustainable
Can be prefabricated for precision and efficiency
Disadvantages
Susceptible to corrosion if not properly protected
Requires fireproofing to maintain structural integrity in fire conditions
Higher material cost compared to concrete
Applications
Concrete Columns: Used in residential buildings, bridges, dams, and heavy industrial structures
Steel Columns: Preferred for high-rise buildings, warehouses, and structures requiring long spans or open spaces
Both concrete and steel columns have their unique advantages and are often chosen based on the specific requirements of the project, such as load capacity, design flexibility, budget, and environmental conditions. In some cases, composite columns (combining concrete and steel) are used to leverage the benefits of both materials.

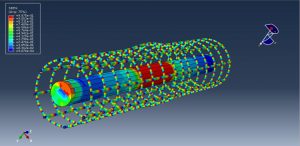

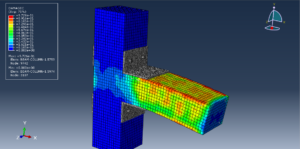

Concrete and Steel Columns in Abaqus
Material Modeling

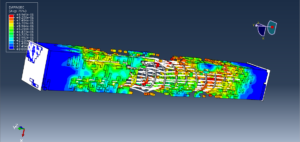

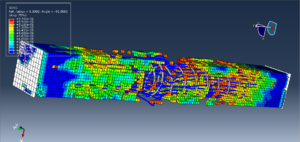

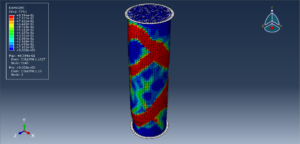

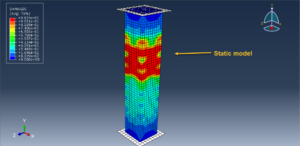

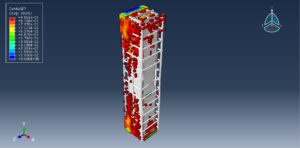

Concrete is modeled using plasticity-based constitutive models, such as the Concrete Damaged Plasticity (CDP) model, which accounts for cracking in tension and crushing in compression
Key parameters include compressive strength, tensile strength, dilation angle, and fracture energy
Steel is modeled as an elastic-plastic material with a bilinear or multilinear stress-strain curve
Key parameters include Young’s modulus, yield strength, and hardening behavior
Analysis

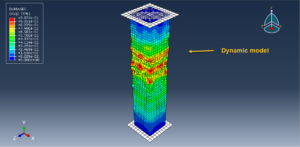

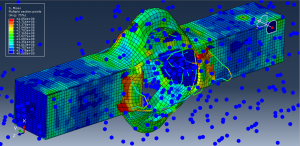

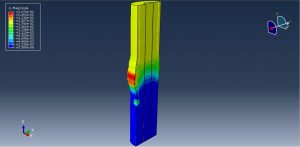

Common analyses include linear buckling, nonlinear buckling (post-buckling), and dynamic analysis

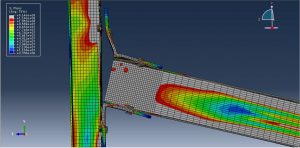

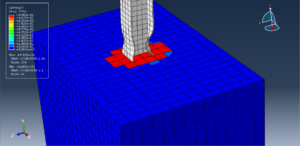

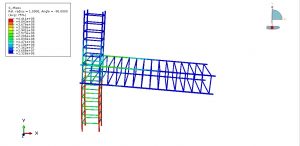

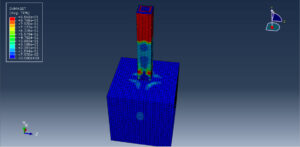

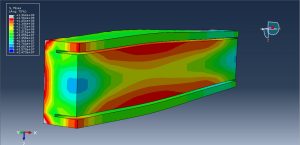

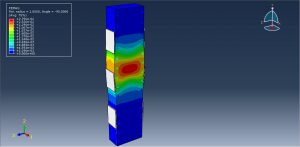

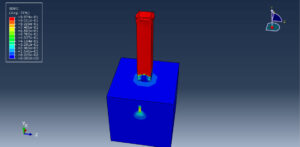

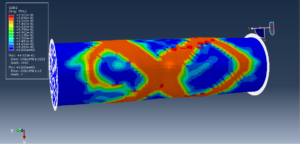

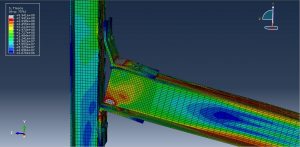

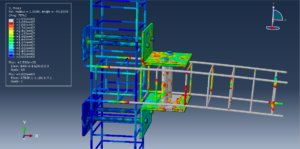

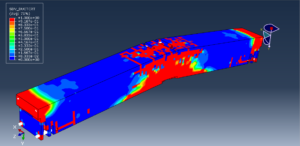

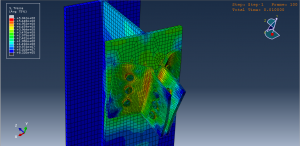

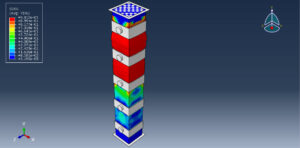

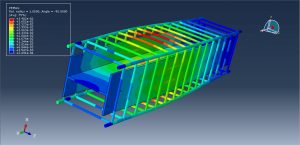

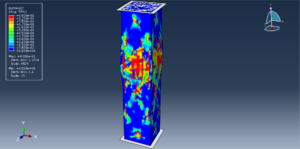

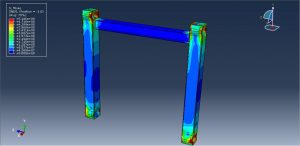

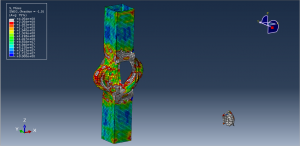

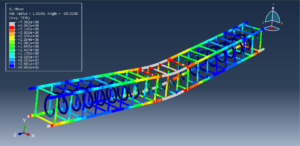

Results include stress distribution, deformation, and buckling loads
By leveraging Abaqus, engineers can predict the performance of concrete and steel columns under various conditions, optimizing designs and ensuring structural safety
