Composite Simulation and Analysis Package in Abaqus

Introduction to Composite Materials

Composite materials are engineered materials made from two or more constituent materials with significantly different physical or chemical properties. When combined, these materials produce a material with characteristics different from the individual components. The primary constituents of composites are

Matrix: The continuous phase that binds the reinforcement together, transferring stress between the reinforcing fibers. Common matrix materials include polymers (e.g., epoxy, polyester), metals, and ceramics

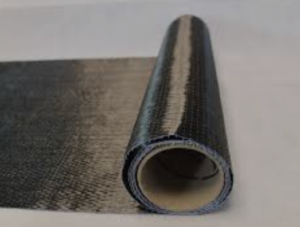

Reinforcement: The discontinuous phase that provides strength and stiffness to the composite. Reinforcements are typically fibers (e.g., carbon, glass, aramid) or particles

Composite materials are widely used in industries such as aerospace, automotive, civil engineering, and sports equipment due to their high strength-to-weight ratio, corrosion resistance, and design flexibility

Simulation of Composite Materials in Abaqus

Abaqus is a powerful finite element analysis (FEA) software widely used for simulating the mechanical behavior of composite materials. It provides advanced tools to model the complex behavior of composites, including

Material Modeling

Abaqus allows the definition of composite materials using laminate theory or micromechanics-based approaches

Users can define orthotropic material properties for each ply (layer) in a composite laminate

Common material models include linear elastic, nonlinear, and damage models (e.g., Hashin, Puck, or LaRC05 failure criteria)

Laminate Modeling

Composite laminates are modeled using shell or solid elements

The Composite Layup feature in Abaqus allows users to define the stacking sequence, ply orientations, and thicknesses of each layer

Abaqus supports both classical lamination theory (CLT) and shear deformation theories (e.g., first-order or higher-order shear deformation theory)

Failure Analysis

Abaqus provides tools to predict failure in composite materials, including

Progressive damage analysis: Simulates the evolution of damage in composites under loading

Failure criteria: Predicts the onset of failure based on stress or strain thresholds

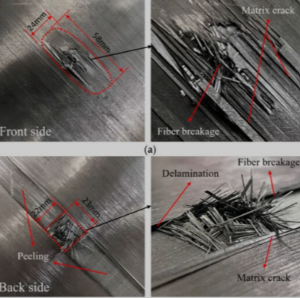

Common failure modes include fiber breakage, matrix cracking, and delamination

Delamination and Interlaminar Failure

Abaqus can model delamination (separation of layers) using cohesive zone elements or Abaqus can model delamination (separation of layers) using cohesive zone elements or

These models simulate the initiation and propagation of cracks between layers

Composite Material Theory: A Brief Overview

Composite materials are engineered by combining two or more distinct materials to create a new material with enhanced properties. The theory behind composite materials revolves around understanding how the individual constituents (matrix and reinforcement) interact to produce the overall mechanical, thermal, and physical properties of the composite

Constituents of Composites

Matrix: The continuous phase that binds the reinforcement. It transfers load to the reinforcement, protects it from environmental damage, and provides shape to the composite. Common matrices include polymers (e.g., epoxy, polyester), metals, and ceramics

Reinforcement: The discontinuous phase that provides strength, stiffness, and other mechanical properties. Reinforcements are typically fibers (e.g., carbon, glass, aramid) or particles

Rule of Mixtures

The Rule of Mixtures is a fundamental concept in composite material theory. It provides a simple way to estimate the effective properties of a composite based on the properties and volume fractions of its constituents

Longitudinal Stiffness (Fiber Direction)

Transverse Stiffness (Perpendicular to Fiber Direction)



Laminate Theory

Composite materials are often used as laminates, stacks of individual layers (plies) with different fiber orientations. The behavior of laminates is analyzed using Classical Lamination Theory (CLT)

Failure Theories

Composite materials can fail in various modes, such as fiber breakage, matrix cracking, and delamination. Common failure criteria include

Maximum Stress Criterion: Failure occurs if any stress component exceeds its allowable value

Maximum Strain Criterion: Failure occurs if any strain component exceeds its allowable value

Tsai-Hill Criterion: A quadratic interaction criterion for anisotropic materials

Hashin Criterion: Separates fiber and matrix failure modes
